Formulate 16ft Funnel 02 Tension Fabric Structure

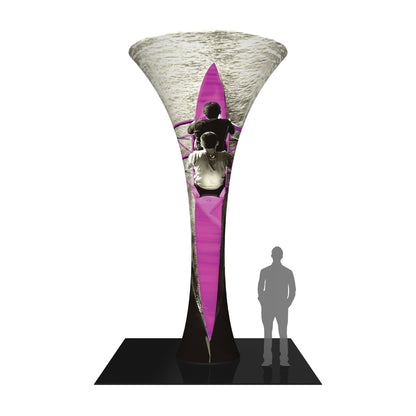

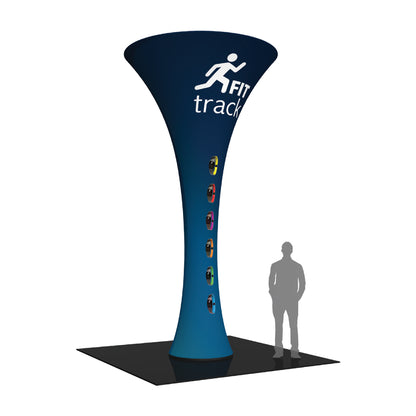

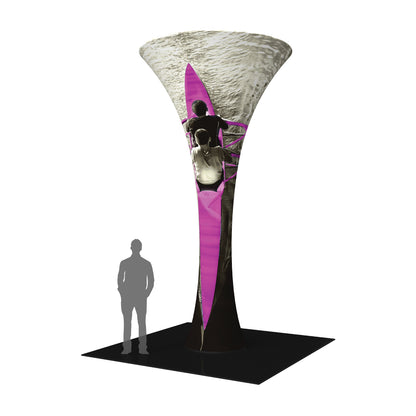

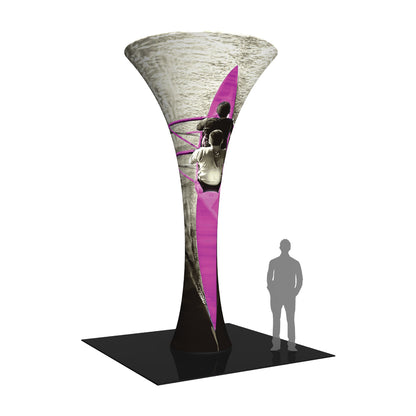

The 16ft Formulate Fabric Funnel 02 transforms any environment through bold form, fabric, and optional lighting. Standing 16ft tall, it combines a heavy duty wooden base with a silver powder coated truss interior to create a dramatic architectural structure that commands attention at trade shows, events, and interior installations.

Vibrant fabric graphics install easily with a zipper at the top and a silicone edge at the bottom for a smooth, secure fit. Accent LED light kits are sold separately and can be added to create a glowing effect within the funnel. When it is time to pack up, the Funnel 02 breaks down into two wheeled OCH2 cases for simple storage and transport.

• Assembled size: 98.5"w x 188.41"h x 98.5"d

• 8ft diameter top & 3.5ft diameter bottom
• 30mm aluminum tube frame with snap button assembly

• 42" diameter at base

• Hardware weight: 140 lbs

• Graphic weight: 20 lbs

• Easy to store and ship
• Lifetime hardware warranty
• 1 year on graphic warranty


Product Downloads

• Product Instructions PDF

• Graphic Template PDF

Includes & Options

• Frame & Graphics
  (1) Snap tube frame kit
  (1) 42" diameter base
  (1) Dye-sublimated zipper pillowcase graphic

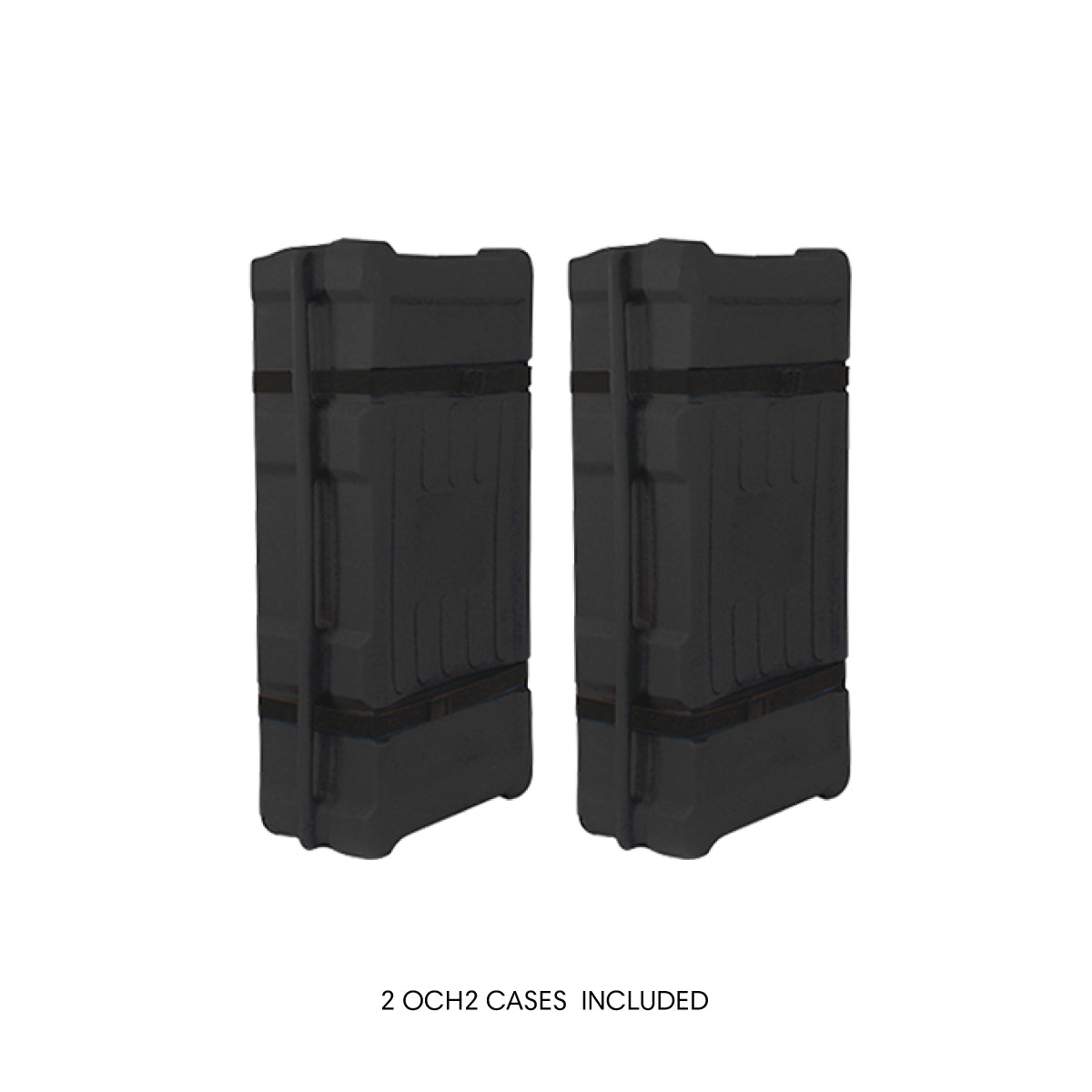

  (2) OCH2 cases (base packs separately)
  (1) 4x4 Skid for base*


• Frame Only
  (1) Snap tube frame kit
  (1) 42" diameter base
  (2) OCH2 cases (base packs separately)
  (1) 4x4 Skid for base*

Production Time

• Lead time: 7 working days production time after proof approval

• Ships from: Chicago, IL

• Shipping weight: 220 lbs


* Funnel must ship motor freight. We will contact you with shipping options and rates.
